Welcome to Hydro - Pneumatic Pumps
The efficient, economical alternative to centrifugal, vane, piston & plunger pumps and hand operated pumps.
Typical Applications:
- Hydrostatic Pressure testing
- Cyclic Pressure Testing
- Burst Strength Testing
- Centralized Lubrication
- Transfer of slurry, Viscous and Corrosive Materials
- Operation of Hydraulic Jacks, Clamps & Presses
- Portable systems for Construction.

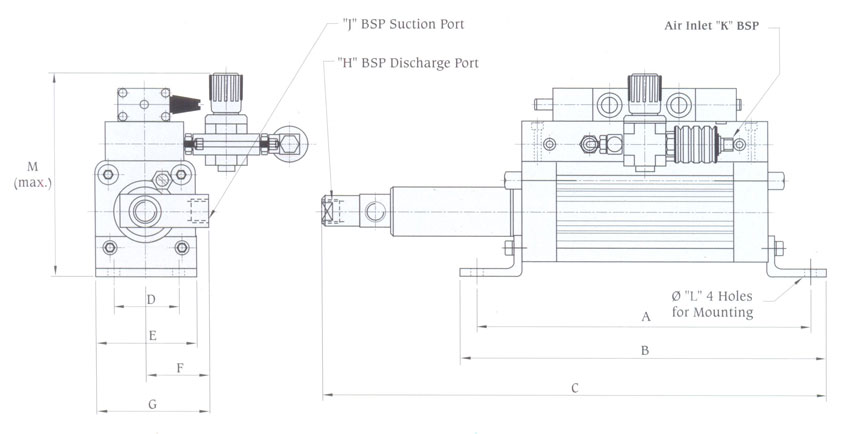

Basic Dimensions
All dimensions in mm
You can find more products, Please go through our other websites: www.duttacontrol.com , www.suryapneutech.com
| Model No. | Ratio | Output Pressure kg/cm² | A | B | C | D | E | F | G | H BSP | J BSP | K BSP | L | M | Free Discharge Litres/min. (Appx.) | Free Air Consumption Litres/min. (Appx.) |
| 80-10-S | 64.0 | 320 | 320 | 354 | 494 | 63 | 99 | 68 | 117 | 1/2'' | 1/2'' | 1/4'' | 12 | 197 | 1.57 | 985 |
| 80-14-S | 32.0 | 160 | 320 | 354 | 494 | 63 | 99 | 68 | 117 | 1/2'' | 1/2'' | 1/4'' | 12 | 197 | 2.76 | 985 |
| 80-16-S | 25.0 | 125 | 320 | 354 | 494 | 63 | 99 | 68 | 117 | 1/2'' | 1/2'' | 1/4'' | 12 | 197 | 3.5 | 985 |
| 80-20-S | 16.0 | 80 | 320 | 354 | 494 | 63 | 99 | 68 | 117 | 1/2'' | 1/2'' | 1/4'' | 12 | 197 | 5.0 | 985 |
| 80-25-S | 10.0 | 50 | 320 | 354 | 494 | 63 | 99 | 68 | 117 | 1/2'' | 1/2'' | 1/4'' | 12 | 197 | 6.9 | 985 |
| 80-28-S | 8.0 | 40 | 320 | 354 | 494 | 63 | 99 | 68 | 117 | 1/2'' | 1/2'' | 1/4'' | 12 | 197 | 7.9 | 985 |
| 100-10-S | 100.0 | 500 | 320 | 348 | 491 | 75 | 128 | 68 | 132 | 1/2'' | 1/2'' | 1/4'' | 14 | 219 | 1.2 | 1150 |
| 100-14-S | 51.0 | 255 | 320 | 348 | 491 | 75 | 128 | 68 | 132 | 1/2'' | 1/2'' | 1/4'' | 14 | 219 | 2.0 | 1150 |
| 100-16-S | 40.0 | 200 | 320 | 348 | 491 | 75 | 128 | 68 | 132 | 1/2'' | 1/2'' | 1/4'' | 14 | 219 | 2.6 | 1150 |
| 100-20-S | 25.0 | 125 | 320 | 348 | 491 | 75 | 128 | 68 | 132 | 1/2'' | 1/2'' | 1/4'' | 14 | 219 | 3.7 | 1150 |
| 100-28-S | 12.75 | 64 | 320 | 348 | 491 | 75 | 128 | 68 | 132 | 1/2'' | 1/2'' | 1/4'' | 14 | 219 | 6.0 | 1150 |
| 100-32-S | 9.75 | 48 | 320 | 348 | 491 | 75 | 128 | 68 | 132 | 1/2'' | 1/2'' | 1/4'' | 14 | 219 | 6.72 | 1150 |
| 160-32-S | 25.0 | 125 | 320 | 360 | 491 | 130 | 186 | 68 | 161 | 1/2'' | 1/2'' | 1/2'' | 17 | 263 | 3.6 | 905 |
| 160-40-S | 16.0 | 80 | 320 | 360 | 491 | 130 | 186 | 68 | 161 | 3/4'' | 3/4'' | 1/2'' | 17 | 263 | 5.7 | 905 |
| 160-56-S | 8.0 | 40 | 320 | 360 | 491 | 130 | 186 | 68 | 161 | 3/4'' | 3/4'' | 1/2'' | 17 | 263 | 11.0 | 905 |
| 160-14-D | 260.0 | 1300 | 521 | 361 | 691 | 130 | 186 | 68 | 161 | 1/2'' | 1/2'' | 1/2'' | 17 | 263 | 0.5 | 1350 |
| 160-20-D | 128.0 | 640 | 521 | 361 | 691 | 130 | 186 | 68 | 161 | 1/2'' | 1/2'' | 1/2'' | 17 | 263 | 1.0 | 1350 |
